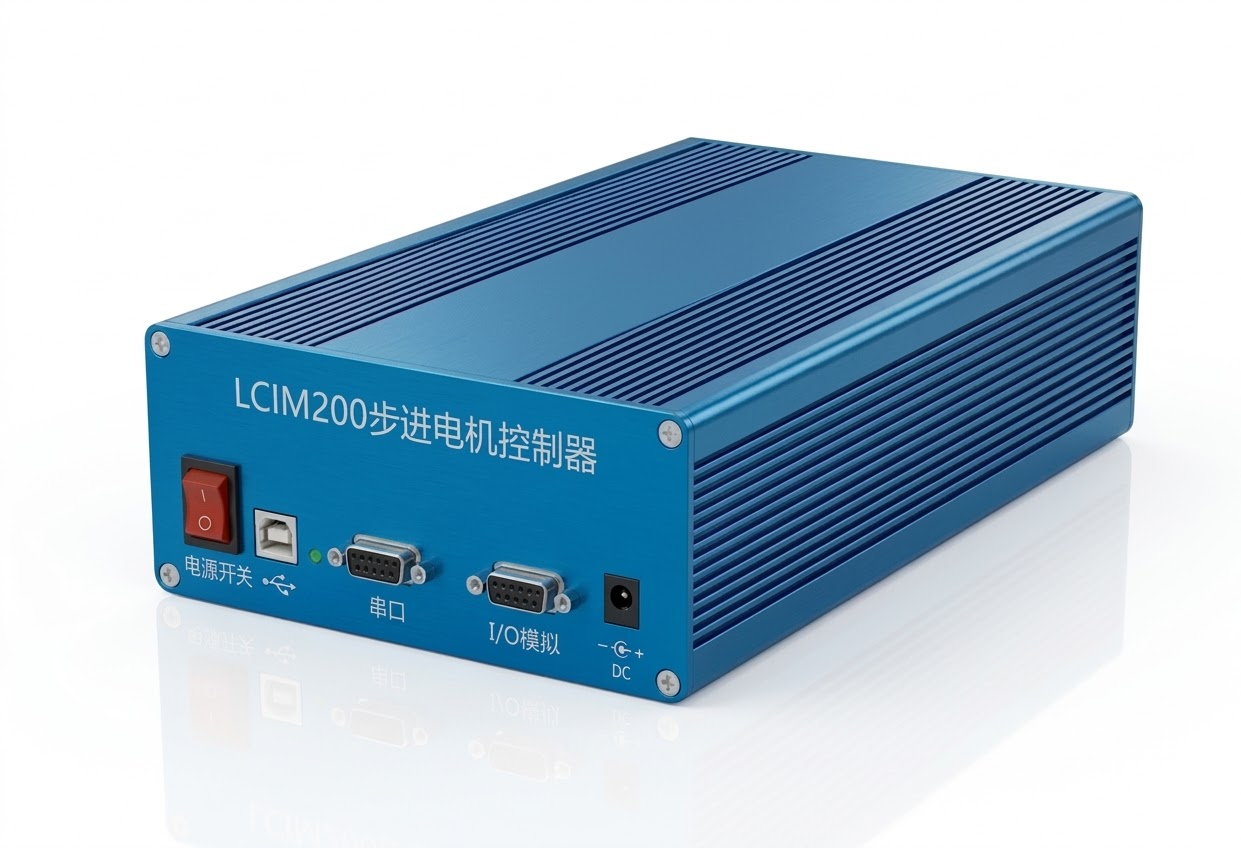

LCIM200 Stepper Motor Controller
High-Dynamic Closed-Loop · Precision Positioning · Modular Motion & Control Unit
Product Description
1. Product Overview
The LCIM200 is a single-axis closed-loop stepper motor controller engineered for industrial automation, precision motion systems, and research instrumentation. It delivers high-precision positioning and robust operational stability for two-phase stepper motors.
By integrating ultra-fine micro-stepping, encoder-based closed-loop feedback, and PID control algorithms, the LCIM200 ensures reliable motion control even under complex load conditions. Compared to compact controllers, the C-S1 features a robust full-metal chassis, offering higher power capacity and expanded interface options. This makes it an ideal standard motion control module for system integrators requiring continuous, high-reliability industrial operation.
2. Key Features 3. Motion Control & Safety Mechanisms
Closed-loop position control with load compensation and macro-command triggering; integrated position error protection and hardware watchdog ensure industrial-grade safe operation.
4. Encoder & Sensor Interfaces
Supports high-resolution TTL/RS-422 encoders and limit, reference/home, and index sensor inputs, enabling high-precision closed-loop positioning and enforcing mechanical travel limits.
5. Electrical Performance & Drive Capability 6. Communication Interfaces & System Integration
7. Mechanical Design & Industrial Construction
Full-metal enclosure suitable for DIN rail or panel mounting; industrial-grade EMI shielding and thermal design ensure compatibility with control cabinets or laboratory platforms.
8. Typical Applications
The LCIM200 is a single-axis closed-loop stepper motor controller engineered for industrial automation, precision motion systems, and research instrumentation. It delivers high-precision positioning and robust operational stability for two-phase stepper motors.
By integrating ultra-fine micro-stepping, encoder-based closed-loop feedback, and PID control algorithms, the LCIM200 ensures reliable motion control even under complex load conditions. Compared to compact controllers, the C-S1 features a robust full-metal chassis, offering higher power capacity and expanded interface options. This makes it an ideal standard motion control module for system integrators requiring continuous, high-reliability industrial operation.
2. Key Features
- Control Architecture: Closed-loop PID control with dynamic parameter tuning and real-time position feedback.
- Micro-Stepping Resolution: Ultra-high resolution (up to 1/2048 full step) to effectively suppress vibration and prevent step loss.
- Motion Profiling: Supports Point-to-Point (P2P) positioning and trapezoidal velocity profiles.
- Power Supply: Wide DC input range (24–48 VDC).
- Encoder Compatibility: Accepts A/B quadrature signals via TTL or RS-422 differential interfaces.
- Programmable I/O: Dedicated inputs for limit switches, reference/home signals, and index pulses.
- Network Topology: Supports Daisy-chain configurations for scalable, modular multi-axis control.
- Peripheral Integration: Comprehensive digital/analog I/O for external triggers, joysticks, push-buttons, and PLC signals.
- Enclosure: Industrial-grade metal chassis optimized for thermal dissipation and EMI shielding.
Closed-loop position control with load compensation and macro-command triggering; integrated position error protection and hardware watchdog ensure industrial-grade safe operation.
4. Encoder & Sensor Interfaces
Supports high-resolution TTL/RS-422 encoders and limit, reference/home, and index sensor inputs, enabling high-precision closed-loop positioning and enforcing mechanical travel limits.
5. Electrical Performance & Drive Capability
- DC supply: 24–48 V
- Configurable phase current to match medium- to high-power stepper motors
- Continuous industrial-grade operation ensures long-term stability
- Metal chassis provides optimized thermal management and space for power devices
- USB / RS-232 for local debugging and remote control
- Daisy-chain multi-controller support for modular multi-axis systems
- Standardized command set with multi-language API support (C/C++, C#, Python, MATLAB, LabVIEW)
Full-metal enclosure suitable for DIN rail or panel mounting; industrial-grade EMI shielding and thermal design ensure compatibility with control cabinets or laboratory platforms.
8. Typical Applications
- Industrial automation
- Precision positioning and linear motion platforms
- Research and metrology instruments
- Optical / microscopy scanning systems
- Single-axis modules for multi-axis stepper systems
- Teaching and laboratory motion control platforms
